Please note – Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

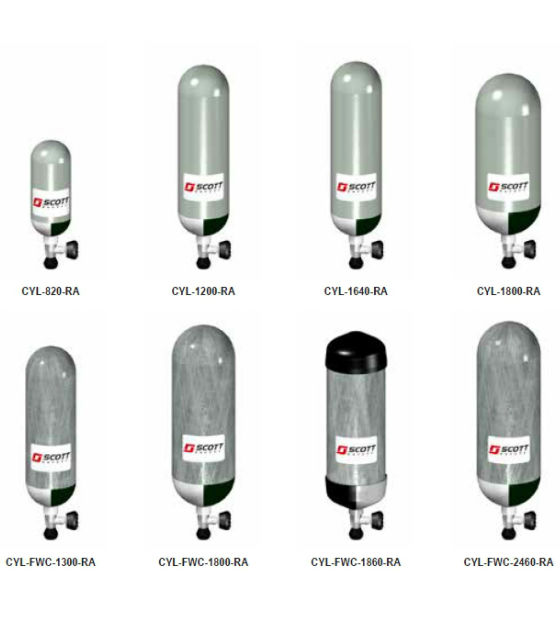

3M Scott Safety Steel & Carbon Fibre Cylinders

3M Scott Safety Steel & Carbon Fibre Cylinders are available for use with various types of breathing apparatus.

Key Features

Supplied full or empty.
Burst discs, pressure gauges and excess flow valves all available as options.
Cylinders may be supplied in accordance with other national specifications.

More Detail

Item Description

Order Information

Documents

Item Description

Order Information

STEEL CYLINDERS	CYL-600 3.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 600 litre free air capacity providing total duration of 15 minutes. For use with CEN-PAQ apparatus only. Dimensions: 110mm diameter x 375mm long. Fully Charged Weight – 5kg 1045898 CYL-600 Full 2006633 CYL-600 Empty CYL-1200 6.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1200 litre free air capacity providing total duration of 30 minutes. Dimensions: 140mm diameter x 600mm long. Fully Charged Weight – 8.8kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1045790 CYL-1200 Full 2006635 CYL-1200 Empty 2018923 CYL-1200-RA Full 2018922 CYL-1200-RA Empty CYL-1640 6.0 litre, 300 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1640 litre free air capacity providing total duration of 41 minutes. Dimensions: 140mm diameter x 610mm long. Fully Charged Weight – 10.5kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1045831 CYL-1640 Full 2006636 CYL-1640 Empty 2018927 CYL-1640-RA Full 2018926 CYL-1640-RA Empty 2019219 CYL-1640-Marine Full (fitted with CV-6) 2019218 CYL-1640-Marine Empty (Fitted with CV-6) CYL-1800 9.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1800 litre free air capacity providing total duration of 45 minutes. Dimensions: 180mm diameter x 575mm long. Fully Charged Weight – 13.0kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1045856 CYL-1800 Full 2006637 CYL-1800 Empty 2018931 CYL-1800-RA Full 2018930 CYL-1800-RA Empty
CARBON FIBRE CYLINDERS	CYL-FWC-540 2.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 540 litre free air capacity providing total duration of 13.5 minutes. For use with CEN-PAQ apparatus only. Dimensions: 105mm diameter x 460mm long. Fully Charged Weight – 2.6kg 1046044 CYL-FWC-540 Full 1046049 CYL-FWC-540 Empty CYL-FWC-820 3.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 820 litre free air capacity providing total duration of 13.5minutes. For use with CEN-PAQ apparatus only. Dimensions: 105mm diameter x 460mm long. Fully Charged Weight – 2.6kg 2018723 CYL-FWC-820 Full 2018724 CYL-FWC-820 Empty CYL-FWC-1300 4.7 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1300 litre free air capacity providing total duration of 32 minutes. Dimensions: 136mm diameter x 576mm long. Fully Charged Weight – 5.2kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1045978 CYL-FWC-1300 Full 2006638 CYL-FWC-1300 Empty 2018935 CYL-FWC-1300-RA Full 2018934 CYL-FWC-1300-RA Empty CYL-FWC-1800 9.0 litre, 207 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1800 litre free air capacity providing total duration of 45 minutes. Dimensions: 172mm diameter x 630mm long. Fully Charged Weight – 6.8kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1046000 CYL-FWC-1800 Full 2006641 CYL-FWC-1800 Empty 2018939 CYL-FWC-1800-RA Full 2018938 CYL-FWC-1800-RA Empty CYL-FWC-1860 6.8 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1860 litre free air capacity providing total duration of 46 minutes. Dimensions: 160mm diameter x 600mm long. Fully Charged Weight – 7.1kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1046013 CYL-FWC-1860 Full 2006640 CYL-FWC-1860 Empty 2018943 CYL-FWC-1860-RA Full 2018942 CYL-FWC-1860-RA Empty CYL-FWC-2460 9.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 2460 litre free air capacity providing total duration of 61 minutes. Dimensions: 178mm diameter x 640mm long. Fully Charged Weight – 8.8kg For cylinder to be used with ACS/new ProPak please add suffix -RA 1046030 CYL-FWC-2460 Full 2010162 CYL-FWC-2460 Empty 2018947 CYL-FWC-2460-RA Full 2018946 CYL-FWC-2460-RA Empty
NIL CYLINDERS	2033219 CYL-FWC-1860-NLL-EMPTY 2033220 CYL-FWC-1860-EFV-NLL-EMPTY 2033221 CYL-FWC-1860-BD-NLL-EMPTY 2033222 CYL-FWC-1860-BD-PG-EFV-NLL-EMPTY 2033223 CYL-FWC-1860-RA-NLL-EMPTY 2033224 CYL-FWC-1860-RA-EFV-NLL-EMPTY 2033225 CYL-FWC-1860-RA-BD-NLL-EMPTY 2033226 CYL-FWC-1860-RA-BD-PG-EFV-NLL-EMPTY 2033383 CYL-FWC-1860-RA-EFV-NLL-EMPTY 2033384 CYL-FWC-1860-BD-EFV-NLL-EMPTY
ADDITIONAL EQUIPMENT	1023846 038.086.00 Cylinder cover for CYL-1200 or CYL-1640 – Yellow Nylon 1023849 038.088.00 Cylinder cover for CYL-1800 1024179 038.247.00 Cylinder cover for CYL-FWC-1300 – Red Cordura 1024181 038.248.00 Cylinder cover for CYL-FWC-1640 – Red Cordura 1024182 038.249.00 Cylinder cover for CYL-FWC-1800 & CYL-FWC-2460 – Red Cordura 1024185 038.250.00 Cylinder cover for CYL-FWC-1860 – Red Cordura 2020676 2020676 Cylinder cover for CYL-FWC-1860 – Silver PVC 2020303 2020303 Cylinder cover for CYL-FWC-2460 – Silver PVC 2020675 2020675 Cylinder cover for CYL-FWC-1800 – Silver PVC 1023116 035.016.03 Cylinder pressure test gauge 200/300 bar 1025964 049.017.97 Cylinder charging label, 200 bar, pack 5 1025963 049.017.95 Cylinder charging label, 300 bar, pack 5 2020714 2020714 Quick fit adaptor for 300 bar cylinder valves 2019301 2019301 Excess Flow Valve 1033612 072.112.99 Cylinder valve blank plugs – Threaded, Red plastic (pack of 25) 1033614 072.113.99 Cylinder valve caps (pack of 10)
